Manufacturing Capabilities

MANUFACTURING CAPABILITIES: SINGLE-SIDED PCB :

Single-sided & Metal-clad PCB production capacity of 15,000 sq. meter per month
Base material:-FR-1, CEM-1, CEM-3, FR-4 & ALUMINIUM (ALCCL)
Material thickness:- 0.80mm, 1.0mm, 1.20mm, 1.50mm, 1.60mm, 3.20 mm
Copper thickness:- 18u, 25u, 35u, 70u, 105u
Thermal conductivity:- 1W, 2W, 3W
Minimum track width:- 0.25 mm
Maximum board size:- 1180 x 550mm
Tolerance limit:- +/- 0.1mm
Surface finish:- Lacquer, OSP, Leaded-HAL and Lead Free-HAL

MANUFACTURING CAPABILITIES: DOUBLE-SIDED PCB :

Double-sided PTH production capacity of 3,500 sq. meter per month
Material thickness:- 1.0mm, 1.60mm, 2.40mm, 3.20mm
Copper finish:- 35u/35u, 70/70u, 105u/105u
Glass transition temperature:- 130Tg to 170Tg
Minimum track width:- 0.20mm
Minimum spacing:- 0.20mm
Maximum board size:- 650 x 550mm
Minimum hole-size:- 0.45mm
Surface finish:- OSP, Leaded-HAL, Lead Free-HAL

List of Machinery :

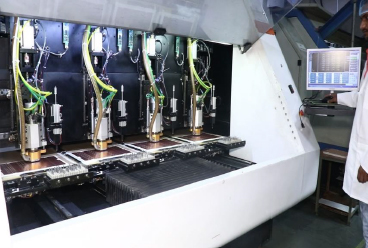

Four spindles CNC drilling machines (03 nos.)
Eight spindles CNC drilling machines (01 nos.)
Two spindle CNC routing machines (03 nos.)
Screen printing machines (08 nos.)
In-house tool room for punching operation
Scoring (V-groove) machines (07 nos.)

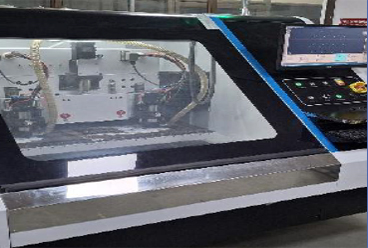

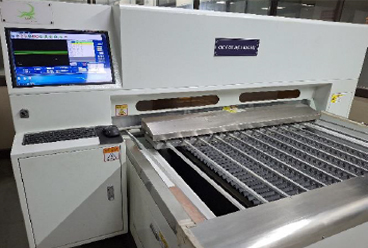

CNC Auto V-groove machine (01 nos.)
CNC Jump-scoring machine (01 nos.)

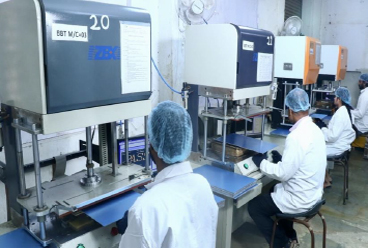

BBT Machines (Electrical Testing) (04 nos.)

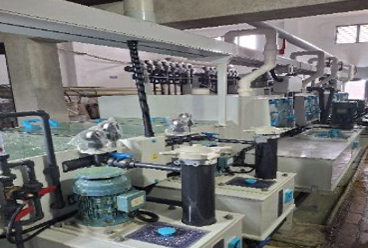

Etching and Stripping Line (02 Nos.)
Surface Treatment Machines (04 Nos.)
Hydraulic Power Press (03 Nos.)
